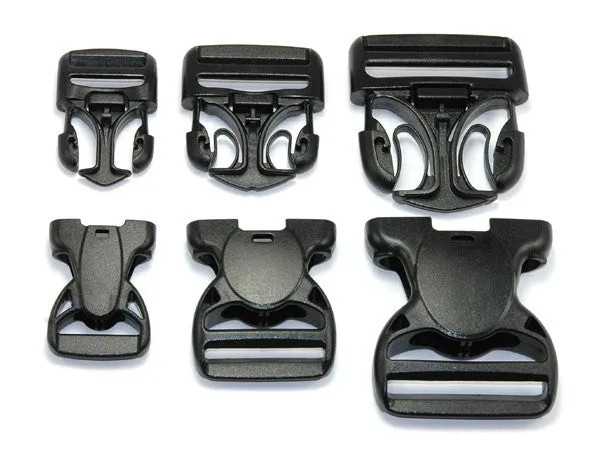

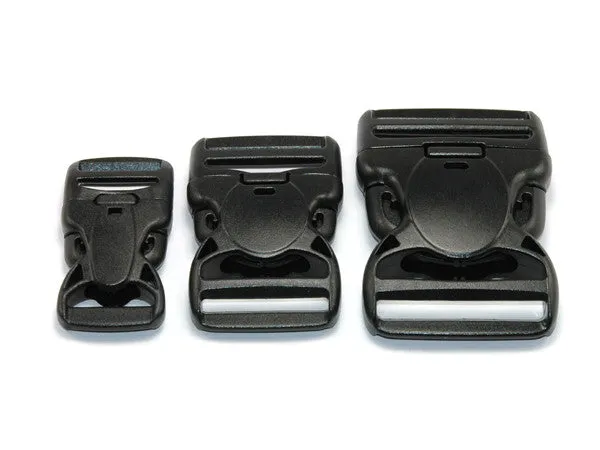

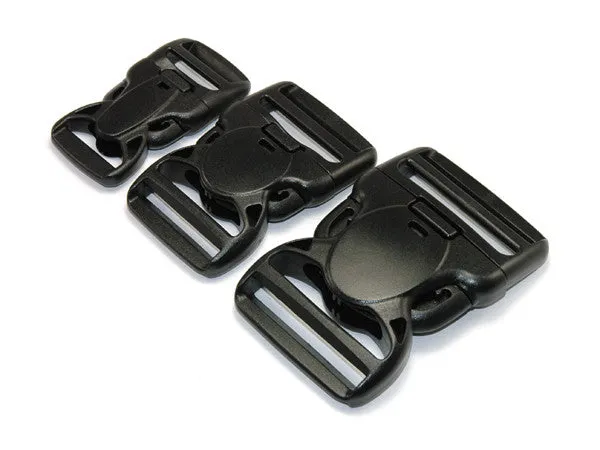

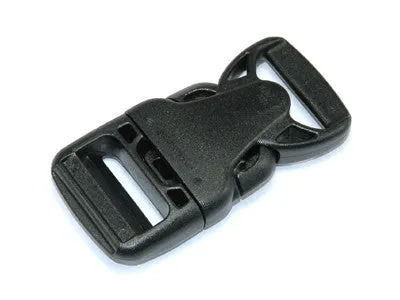

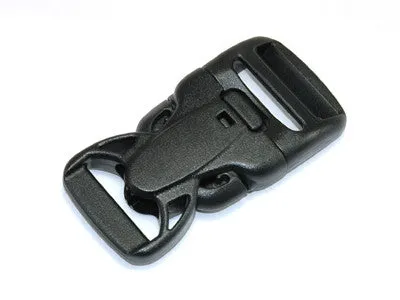

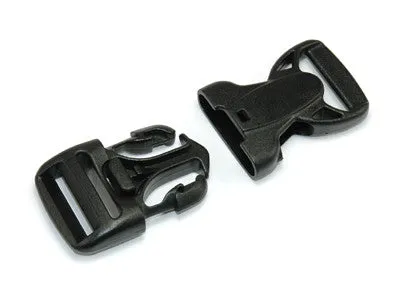

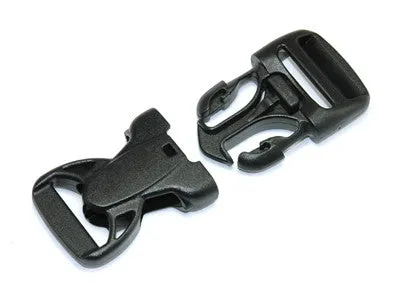

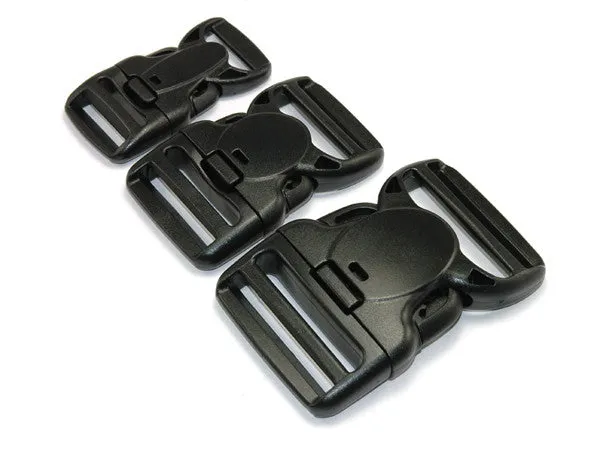

One Side Adjustable for 1 Inch (25 mm). Dual Adjustable for 1 1/2 Inch and 2 Inch (38 mm and 50 mm).

1" Breaking Strength 121 lbs, 55 kgs.
1 1/2" Breaking Strength 143 lbs, 65 kgs.
2" Breaking Strength 187 lbs, 85 kgs.

Breaking Strength can be varied with respect to individual applications. These figures are offered as reference only and are not to be used as guaranteed performance figures. Products should be tested in their specific application.

Made of Polyoxymethylene (POM), also known as acetal, polyacetal, and polyformaldehyde, is an engineering thermoplastic used in precision parts that require high stiffness, low friction and excellent dimensional stability.

1" Dimension 2 13/16" x 1 3/8" x 1/2" (71 mm x 35 mm x 13 mm)
1 1/2" Dimension 3 5/32" x 2" x 9/16" (80 mm x 50 mm x 14 mm)
2" Dimension 3 3/4" x 2 1/2" x 5/8" (95 mm x 63 mm x 16 mm)

All sizes in stock are compliance with the bluesign standard.
